New Pikes Peak Diesel Record-Holder Uses Outrageous Tri-Turbo VW Four-Cylinder

Four cylinders, three turbos, zero lag.

byJames Gilboy|
Racing photo
PPIHC
Share

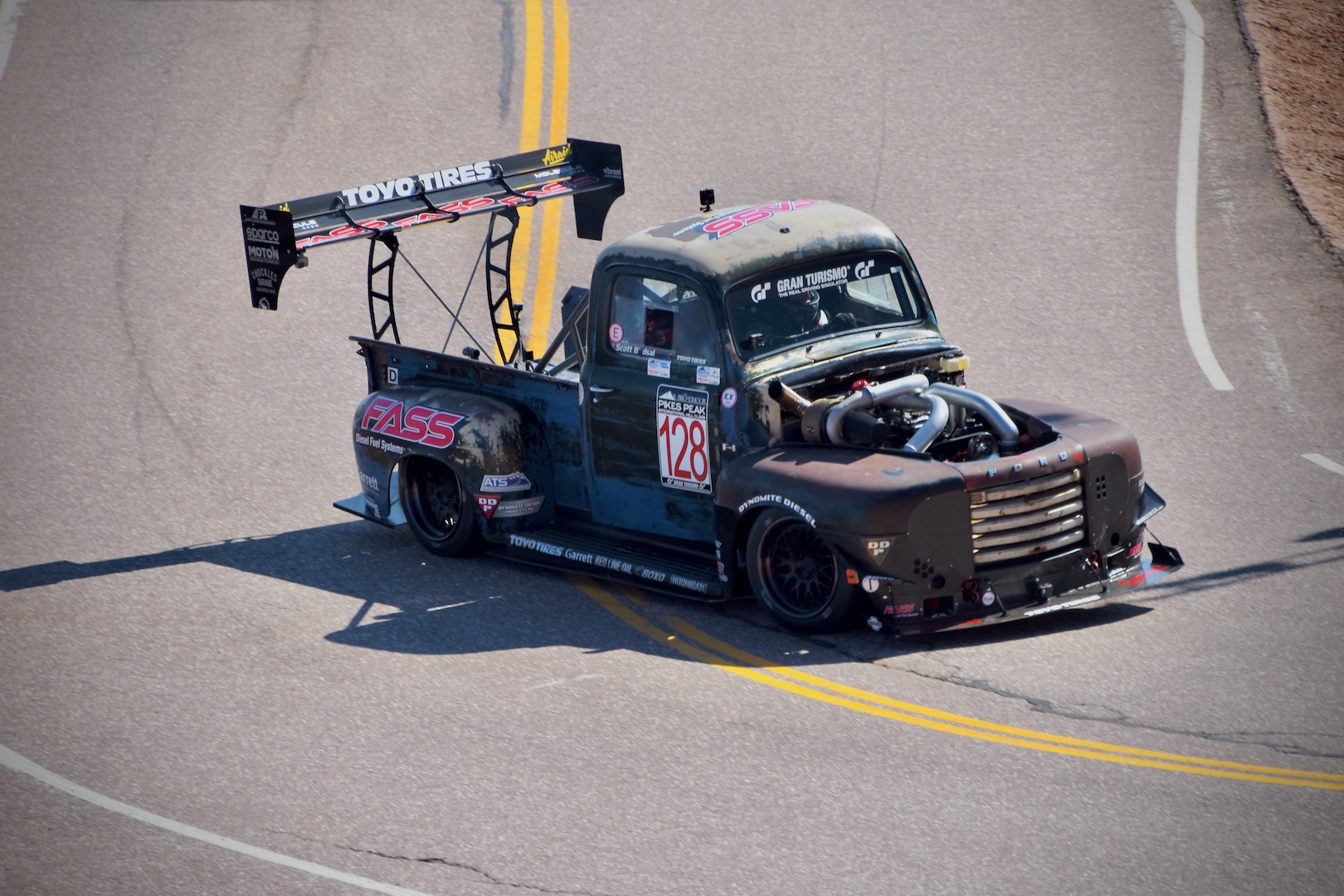

When a Cummins-powered 1949 Ford F-1 pickup truck broke Pikes Peak's diesel record in 2020, it kicked off a sooty, whistling arms race at the world's most extreme hill climb. This year, the record fell in dramatic fashion as the groundbreaking Ford was destroyed in a tumble down a cliff, and its time was trounced by a driver that finished a mere 1.042 seconds behind it in 2020. That driver was Grégoire Blachon, who returned to the mountain this year with a prototype powered by a tri-turbo Volkswagen four-cylinder diesel that's built like no other engine on earth.

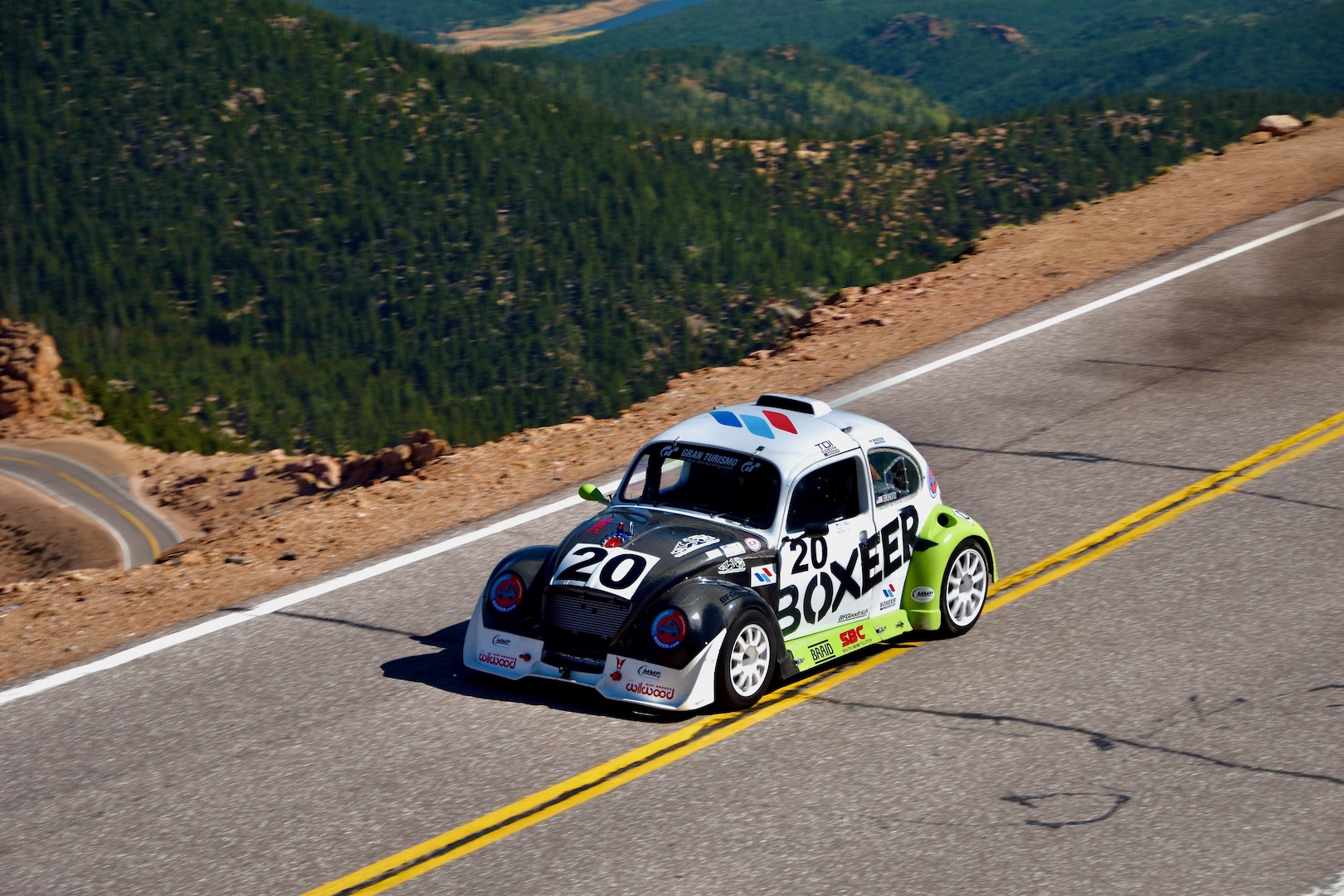

Blachon, an engineer by trade, told The Drive he has raced Pikes Peak for a decade now—and only races Pikes Peak. He debuted in 2013 with a diesel Subaru Impreza, and returned in 2020 with a classic VW Beetle. It was no ordinary Bug, either, as it had a 2.0-liter VW TDI with compound turbos, linked to a seven-speed Porsche PDK transmission. It proved to be more power than the Beetle could handle by toasting its brakes, slowing down Blachon just enough for the '49 Ford to take the diesel record by a slim one-second margin.

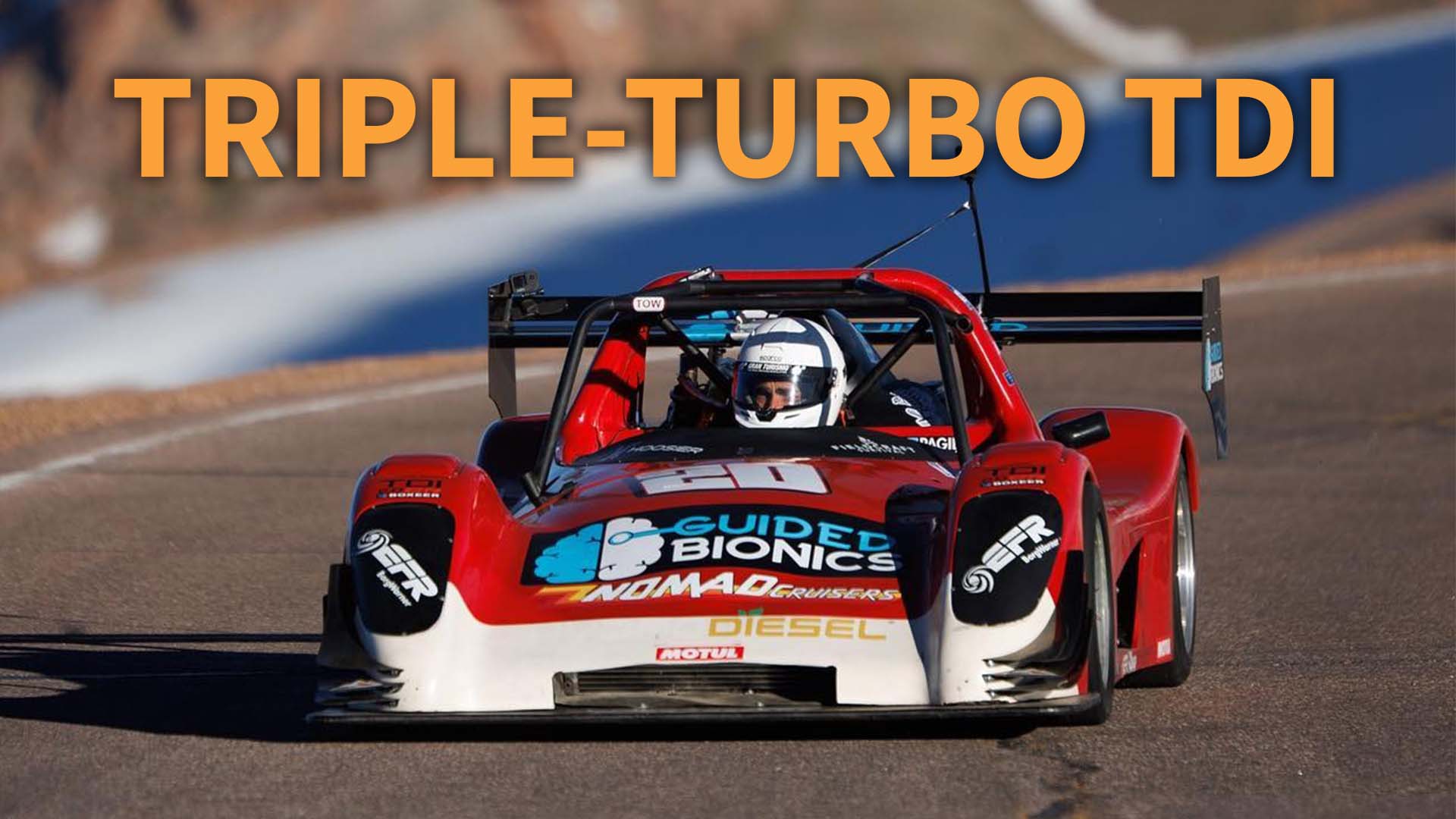

That meant any improvement at all would put Blachon in the running for the record, and improvements he brought. Though he couldn't bare his fangs in 2021 or 2022 due to weather problems, Blachon showed up in 2023 with a Radical SR prototype, powered by an improved version of the Beetle's diesel engine.

Output rose to 440 horsepower thanks to the addition of a third turbo, plumbed in a mind-bogglingly complex fashion to smooth throttle response. The setup begins with a tiny 24-millimeter turbo, which generates 20 psi of boost at idle and maxes out at 45 psi. When its turbine reaches 240,000 rpm—that's 4,000 revolutions per second—its variable-geometry vanes open up, and it redirects its wastegate into the second, 45-mm turbo. It's already spooled by this point, and when it hits 165,000 rpm it repeats the process to feed the third, 71-mm snail. This all results in 70 psi of peak boost.

That one also has to let off excess pressure, as Pikes Peak's thin air means blowing a turbo by over-speeding it is a real risk. It's why Blachon equipped the engine with turbo speed sensors, cylinder pressure sensors, exhaust gas temperature monitoring, and more to prevent this incredibly complex engine from grenading itself. It's apparently the first setup of its kind, and Blachon says it seriously impressed an Audi Motorsport engine tech who can claim partial credit for the diesel domination of Le Mans.

"Throttle response is awesome," Blachon told me, adding that the engine sounds like an airliner taking off. "No bumps at all, the power is constant."

"3,600 rpm to 5,200 rpm is a flat power curve between torque crossover and power. So, at any time that you decide to floor it—no exception—the car rockets out."

By that, Blachon means his 1,640-pound Radical rumbles from zero to 100 mph in just 5.8 seconds. Apparently, it'll run a standing eighth-mile in 6.1 seconds at 118 mph.

With a chassis finally capable of keeping up with his engine, Blachon finally got his moment of glory in 2023, posting a 10:25.071. Poetically, that's almost exactly a minute quicker than his previous best—and of course, the old diesel record. It's also getting mighty close to the 10-minute barrier once thought unbreakable when Pikes Peak was a mixed-surface race.

But he can't get too comfortable at the top, because he wasn't the only diesel to break the old record this year. A Power Stroke-swapped Nissan GT-R passed the mark too, with a time of 11:06.535—and its builders told us they think they can easily find another 35 seconds. That'll put them within striking distance of Blachon's record if he doesn't continue to raise the bar.

And if he doesn't, someone else eventually will. Pikes Peak is the last true world-class race in the world where the sky is the limit, where you can race anything with four wheels—so there's no telling what form the next record-breaker may take.

Got a tip or question for the author? You can reach them here: james@thedrive.com
