How I Used Coding To Defeat My VW GTI’s Stability Control Systems
Modern stability control is talented but it can often get in the way of fun.
All modern Volkswagens come with incredibly intrusive stability control and traction control systems from the factory. Stock, they work OK and don’t feel too bad. But if you’re like me, and you can’t help but modify cars to the point of ruination, the factory programming simply won’t cut the cheddar. That's why I decided to break it on my 2010 Volkswagen Golf GTI.
Why break it, you ask? Just turn it off, right? Nope. The Bosch Electronic Stability Program/Anti-Lock Brakes (ESP/ABS) system VW uses cannot be fully defeated. There is no pedal dance, button tapping, or fuse pulling that will work and maintain mostly normal function. To see what I could do about it, I took to the web for research.
Googling how to fully turn off ESP in my Mk6 for mad slides brought back a plethora of results. Many owners felt similar frustrations, and I became quite jealous of 2012-2014 Mk6 GTI and all Mk7 owners because they could fully defeat their ESP with simple coding. Many tens of forum threads of fellow 2010-2011 Mk6 owners trying to figure out how to defeat their ESP came up empty-handed. None of them could crack the code of making their buttons work properly.

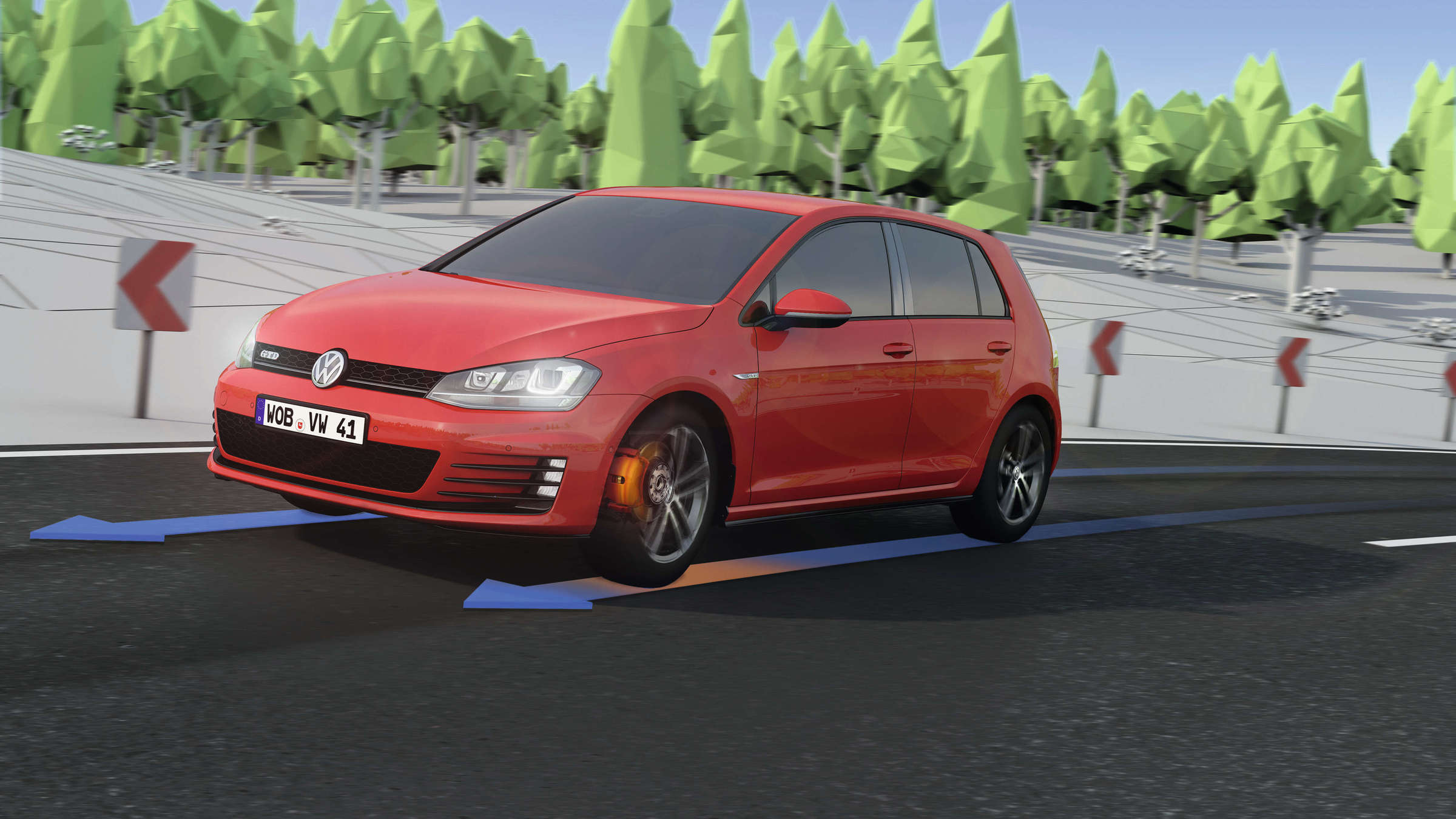

Pushing the ESP button on a 2010-2011 GTI turns traction control turns off, but not really. The car is equipped with something called VW Cross-Differential System, or XDS. It uses the ABS to grab spinning tires to simulate a limited-slip differential. When you turn traction control off, it still tries to kill more wheelspin than you would expect.
Unlike in some cars, there is no second button press in this GTI. You get one press on and one press off. There is no stability control off. Huge bummer.
I decided to buy a thing called an OBDEleven to mess around with coding anyways. I wanted to activate gauge cluster staging, try to disable tire pressure monitoring, and maybe code some other fun functions into the car. About $70 and a few days later, it was at my door.
I popped it into the OBD socket of my GTI, connected it to my phone, and started doodling around. I did some research and got my gauge sweep function working but couldn’t get the TPMS to disable, and I couldn’t manually code the ESP to disable. The OBDEleven works as an almost fully functional factory diagnostic, but it doesn’t quite have the power of a dealer-level diagnostic tool like VCDS. I still had plenty of access to most of the CAN modules on the GTIs network.
Getting frustrated, I started browsing the pre-loaded “apps” that do the hard work for you. The OBDEleven actually had an app for “ESP defeat.” Seemed legit. I hit execute, saved it, and nothing happened. I did it again and nothing.

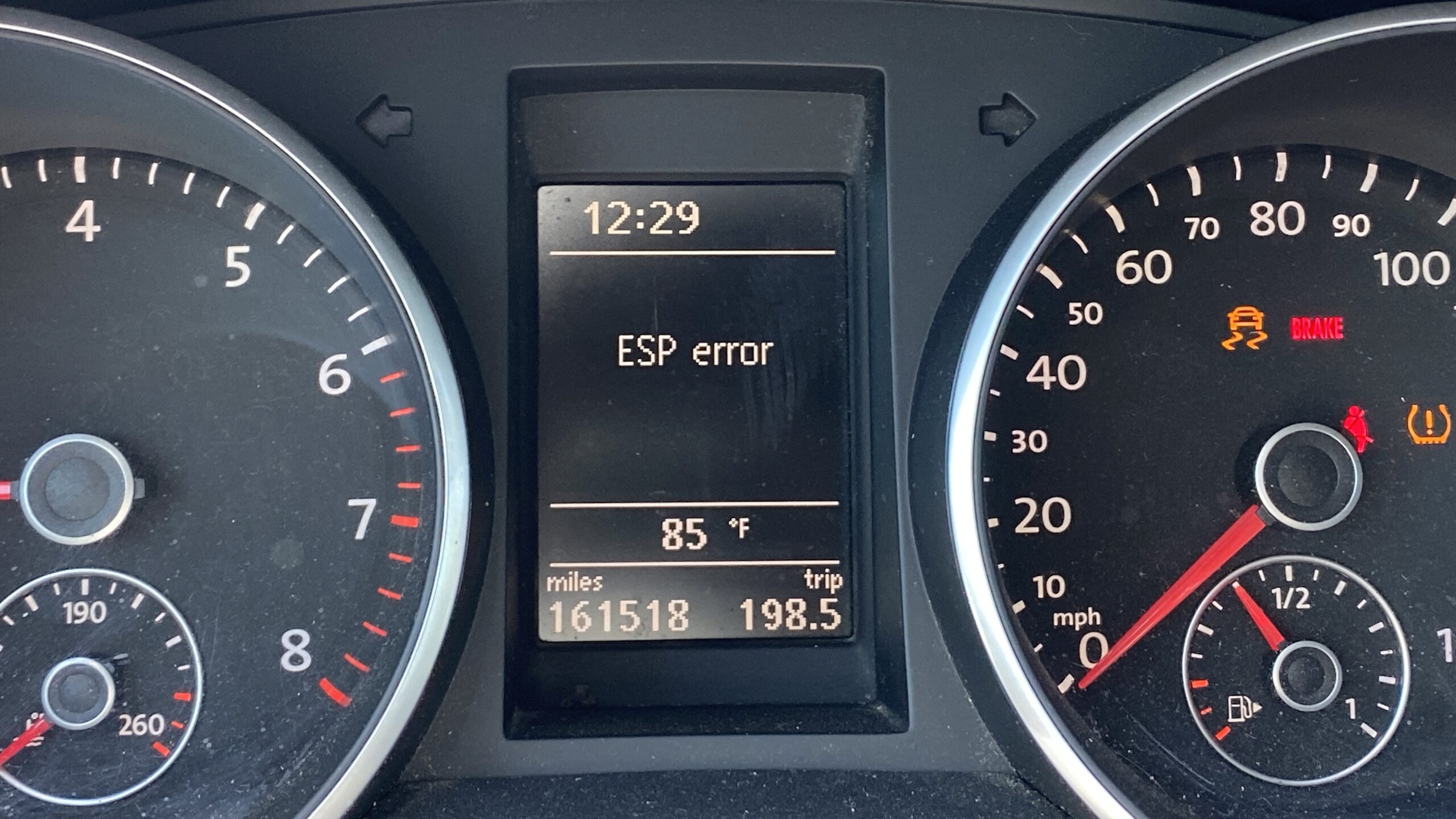

I found another one that said “ESP defeat v2,” and I executed it without reading the description. Something happened, and the dash now said “ESP off” when I hit the button. I was about to declare victory when I hit the button to enable, but the ESP light remained on, the car beeped, and now the dash read “ESP error.”
I looked at the codes for the ABS module. It said “incorrectly coded module” and “longitudinal acceleration sensor signal implausible.” So the scan tool had uploaded some weirdo coding to my ABS unit. I stupidly did not back up my original coding before I executed the program, and I had no clue what my original coding was.
I took a test drive to verify what worked and what didn’t, and I accidentally made my car do exactly what I wanted. It had zero stability and traction control, but it still had ABS. No XDS, though. I accepted this as a semi-victory and I drove the car for a year with this setup.
Now, I’m on a mission to de-shitbox my car, and I wanted to learn how to break the stability control on purpose, so I could easily and reversibly enable and disable ESP. For this mission, I purchased the proper Ross-Tech HEX-CAN V2 and downloaded VCDS for maximum accuracy and access. I did what they call an auto-scan, which is a readout of the full system health of the car, and posted it on the Ross-Tech forums, hat in hand, asking for my original ABS module coding and hoping that was my issue.
A day later, a Ross-Tech employee sent over the coding I needed… sort of. It was the exact coding that was loaded into my current module, so it must have been correct. I dug around and found some diagnostic tools to re-calibrate the sensors in the ESP system. All that did was break it more. Now I had no ABS and a full christmas-tree dashboard. I began a diagnostic test that I couldn’t finish because nothing was communicating correctly. The guide said that both the ABS and ESP lights were meant to be flashing, but the ABS light refused to flash, and the test wouldn’t complete. It stubbornly stayed solidly on.
After an hour of full frustration, with my airbag light inexplicably triggered, I finally took a shot in the dark and Googled the fault code that my ABS module was reporting. That action was the lucky break. I got a hit from a Ross-Tech page that told me my exact situation: “incorrectly coded module” and “longitudinal acceleration sensor implausible." The solution? “Common on cars that are coded for hill hold assist but do not support it.”
I grabbed VCDS, snaked my way through the various modules to get to the ABS module. I used the very helpful long-coding helper, and unclicked the option for hill-hold assist. Voila, my ABS and ESP lights were flashing! Elation building, I clicked into first gear and did the diagnostic test.
Mercifully, all the lights went away and my dash was clearer than I had ever seen it. I fixed my problem, and now I know how to break it when I don’t want stability control ruining my fun at the track.
Driving around with a Christmas tree dash for a few months really makes you feel bad about your car. Suddenly, the GTI feels a lot nicer and a lot less like a beater.
Got a tip? Send a note to firstname.lastname@example.org
